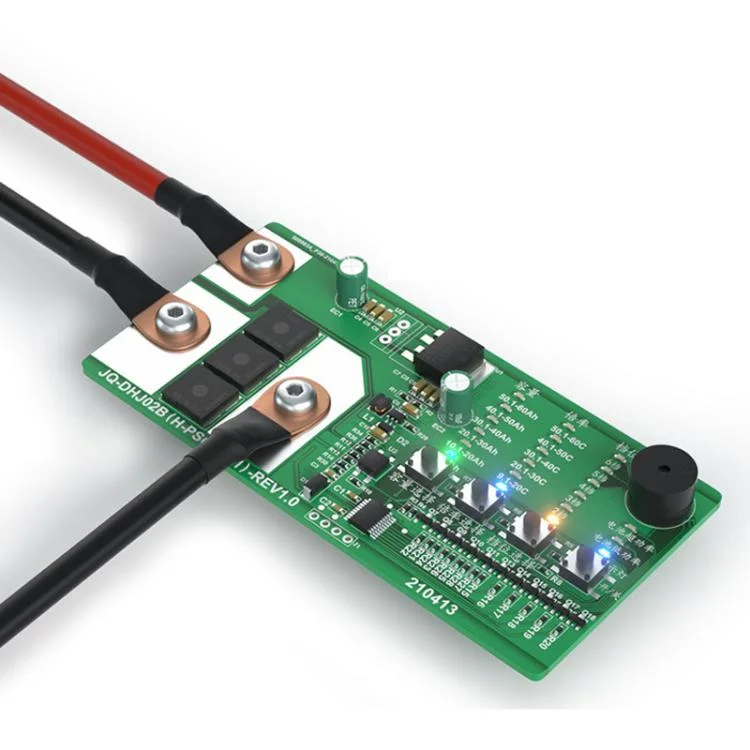

DHJ-02B Intelligent Spot Welder Machine for Batteries 100-900A Adjustable Current & 6.5-16V Wide Voltage, Anti-Burnout Protection

Original product information

1. This spot welder is suitable for securely welding various cylindrical lithium-ion batteries (e.g., 18650, 26650, 32650), Ni-MH, and Ni-Cd batteries. It supports the use of nickel strips with thicknesses from 0.1mm to 0.3mm.2. An integrated intelligent logic control chip automatically calculates the battery power parameters. This smart regulation is designed to prevent MOSFET burnout ("blowouts") during operation with different battery types.3. Equipped with a total of six Infineon MOSFETs (three on the front and three on the back), the welder is engineered to handle peak welding currents up to 1800A, providing strong and reliable performance.4. It requires users to provide their own separate 6.5V-16V power supply to operate, as it is not included.Parameters:1. Product Model: DHJ_02B2. Operating Voltage: 6.5V-16V3. Operating Current: Less than 20mA4. Standby Power Consumption: Less than 0.5mA5. Recommended Operating Temperature: -10-60 degrees Celsius6. Product Dimensions: 107 x 53mm x 1mm7. Peak Welding Current: 1800A MAX8. Intelligent Sleep Mode: Automatic sleep mode after 8 minutes of inactivity9. Welding Mode: Default automatic welding mode10. Welding Nickel Sheet Thickness: 0.1-0.3mm (related to battery discharge capacity)11. Common Power Supply: High-rate lithium batteries, lead-acid batteries, high-rate lithium iron phosphate batteries, etc.Packaging List: 1x Intelligent Mainboard, 2x Connection Cables, 2x Welding Pens (38cm long), 1x Nickel Strip Roll (0.1mm thick, 10mm wide, 2m length), 2x Heat Shrink Tubing, and 4 sets of Screws.
